4.6.3 Anchor windlass

Anchor windlasses are available as an optional accessory. They help you raise or drop the anchor quickly, easily, and reliably. You can opt for one or two windlasses. Anchors are included with the windlasses.

If the anchor windlass releases while the boat is moving, it can cause substantial damage to the boat, crew and other people.

Always fasten the anchor windlass mechanically in place to prevent it from releasing while the boat is moving.

The anchor windlass has no automated stopping mechanism. The anchor must be able to move freely to avoid damaging the boat.

Make sure the anchor is always in your line of sight when lifting it.

Once the anchor is in place, make sure not to over-tighten the rope.

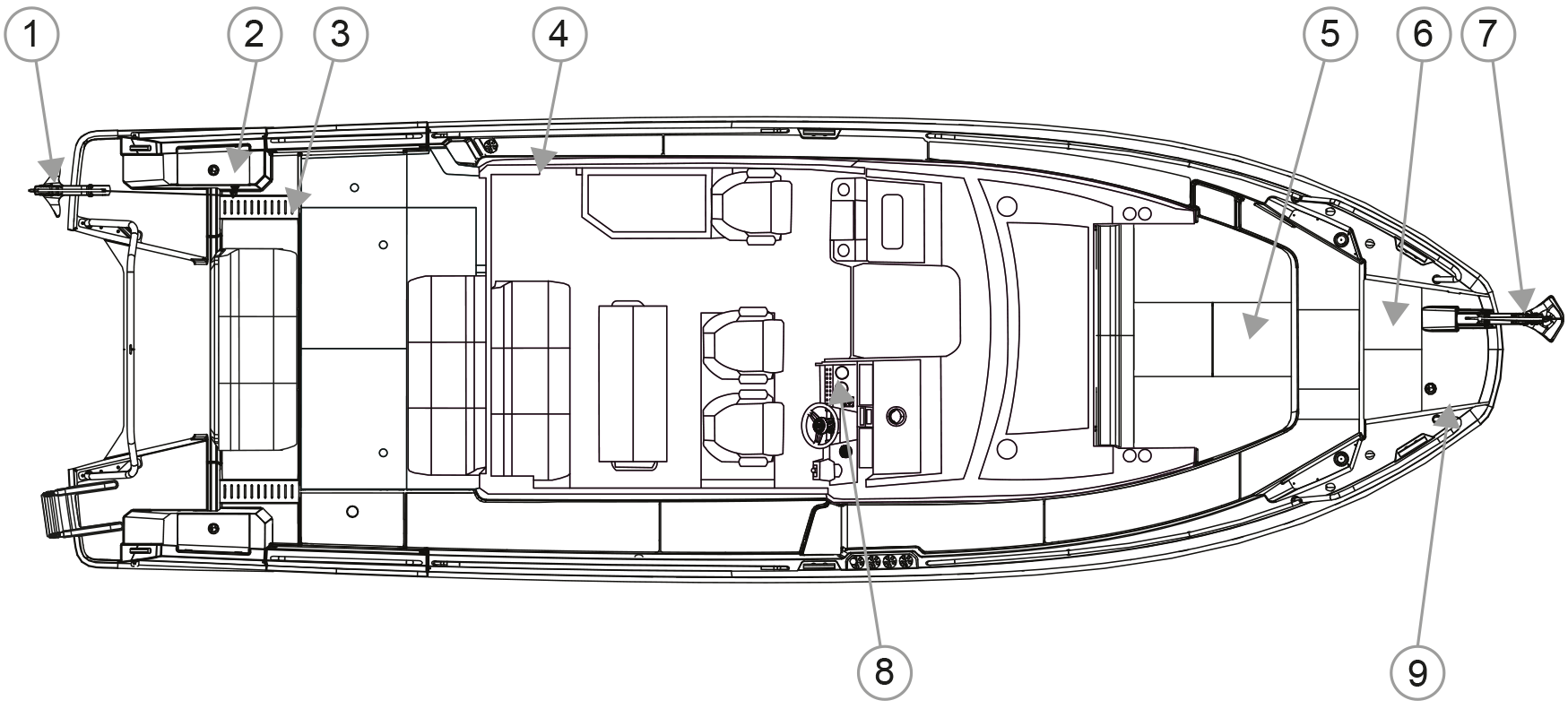

Anchor windlass

  1. Aft anchor

  2. Aft anchor winch

  3. Aft anchor winch fuse and battery (under deck)

  4. Battery switch for anchor winches

  5. Bow anchor winch fuse and battery (under front cabin bed)

  6. Bow anchor winch

  7. Bow anchor

  8. Remote control for the switch for aft anchor winch

  9. Control switch for bow anchor winch

Using anchor windlasses

The chain or rope must be the correct type for the windlass. For the recommended anchor chain or rope type, see section 9.2 Technical specifications.

To activate the anchor windlasses, turn power on from the bow thruster main switch on the main switch panel.

  • You can operate the aft anchor windlass on the steering console or with the remote control.

  • To operate the bow anchor windlass, use the buttons located in the bow anchor storage space.

  • For more detailed instructions for use, see the manufacturer’s manual.

Troubleshooting

The device is connected to a heavy-duty fuse. In case of fuse overload, check the functioning of heavy-duty fuses from the holes in the fuse covers. If the metal strip inside is damaged, the fuse is tripped.

Changing tripped heavy-duty fuses yourself poses a risk of electric shock and serious injury.

Do not change a tripped fuse yourself but contact a qualified nautical electrician.

Even opening the cover is not recommended. If it is necessary to open the cover, make sure that all the current cables from the batteries are disconnected.

For more information, see the manufacturer’s manual.
