Boat model

Quarken 35 Cabin Tourer

Purpose of use

Recreational

Engine

Yamaha F300 NSB2 or F350* twin outboard engines. (*optional)

Max engine power

522 kW (700 hp)

Max number of passengers

10

Number of beds

2 + 1 + 2* (*optional)

Design category

B - Offshore

Max speed

+ 44 kn

Material

Fiberglass

Certification

See Declaration of Conformity

Conformity to standards

See Declaration of Conformity

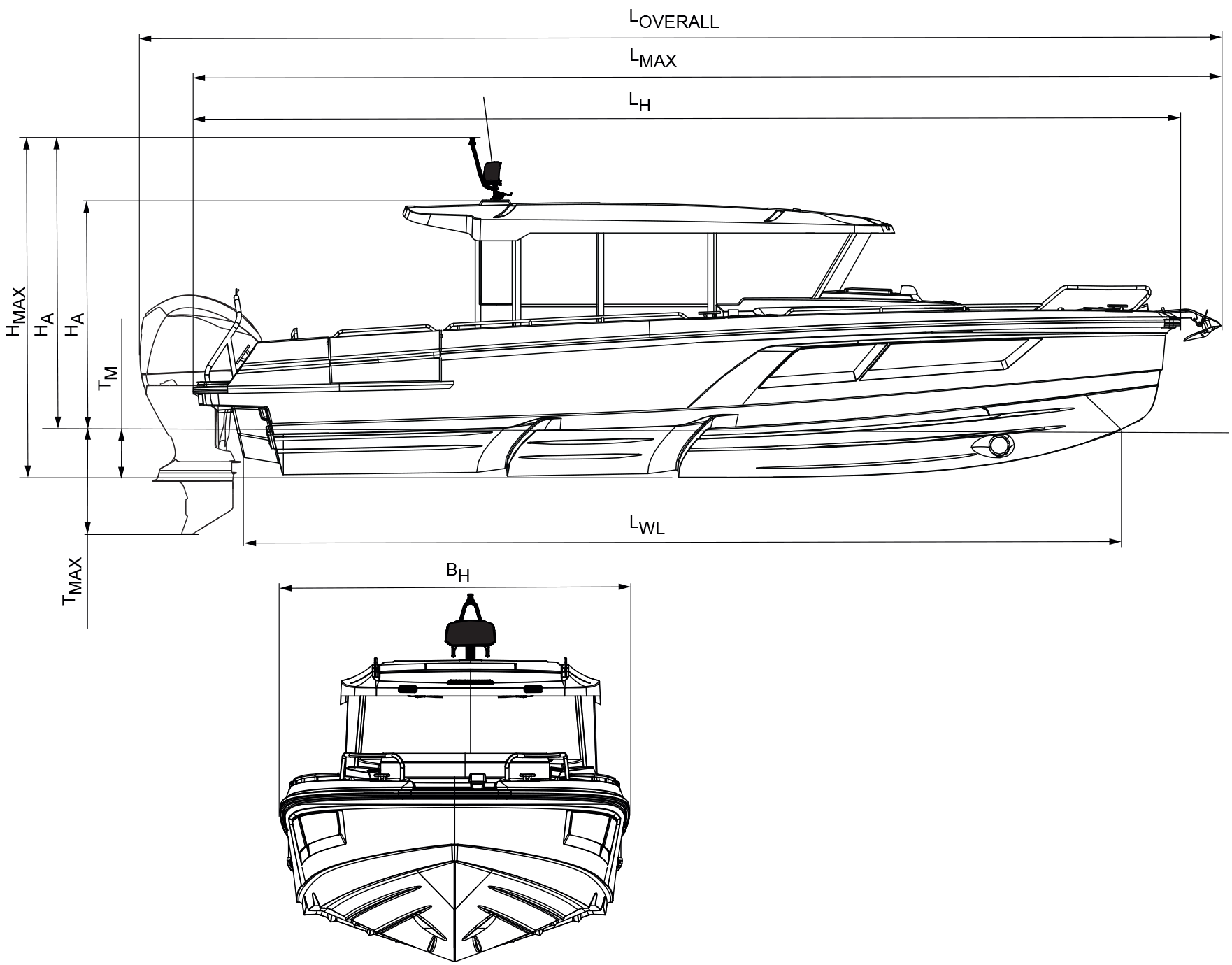

Maximum beam  (BMAX)

3.56

11.68

Hull beam (BH)

3.48

11.42

Maximum length (LMAX)

10.67

35.01

Hull length  (LH)

10.59

34.75

Length on waterline (LWL)

9.42

30.90

Maximum draft (TMAX)

0.92

3.00

Hull draft (TM)

0.59

1.93

Height (HMAX)

3.00

9.84

Height from waterline, mast up (HA)

3.18

10.43

Height from waterline, without light mast (HA)

2.53

8.29

Empty craft (mEC)

4569

10073

Boat weight without load (mLC)

Maximum trailering weight, of which:

5119

11285

Minimum operational equipment

60

132

Engine

550

1213

Maximum load (mMTL)

Of which:

1790

3946

Total person mass.

Calculated average:

• Adult 75 kg (165 lb)

• Child 37.5 kg (83 lb)

750

1653

Personal luggage and stores

100

220

Edible stores and provisions

100

220

Gasoline

600

1323

Fresh water

120

265

Septic waste

120

265

Boat weight with maximum load (mLDC )

6849

15099

Gasoline fuel tank

800

211

Fresh water tank

120

32

Septic tank

120

32

Diesel tank

40

11

Electric bilge pump

41

650

Manual bilge pump

33

523

Line types for mooring and towing

• Polyamide, polyester and nylon lines 12 mm (in)

Anchor chain type

• Diameter 10 mm (in)

• Length 3.5 m (ft)

Strength ratings for mooring, towing and anchoring lines

• Towing and ancho­ring from front cleat: 40.5 kN

• Mooring forward force rating for front and centre cleats: 32.0 kN

• Mooring rearward force rating for the back cleat: 26.6 kN

External anchors

• Main anchor minimum 10 kg (22 lb)

• Secondary anchor 7.5 kg (17 lb)
