9.2 Technical specifications

General specifications

Boat model

Quarken 35 Sport Tourer/Grand Tourer

Purpose of use

Recreational

Design category

B - Offshore

C - Inshore

Max number of passengers

 Category B

 Category C

10

12

Engine

Yamaha F300 NSB2 or F350* twin outboard engines  (*optional)

Max engine power

522 kW (700 hp)

Number of beds

2 + 1

Max speed

+ 44 kn

Material

Fiberglass

Certification

See Declaration of Conformity

Conformity to standards

See Declaration of Conformity

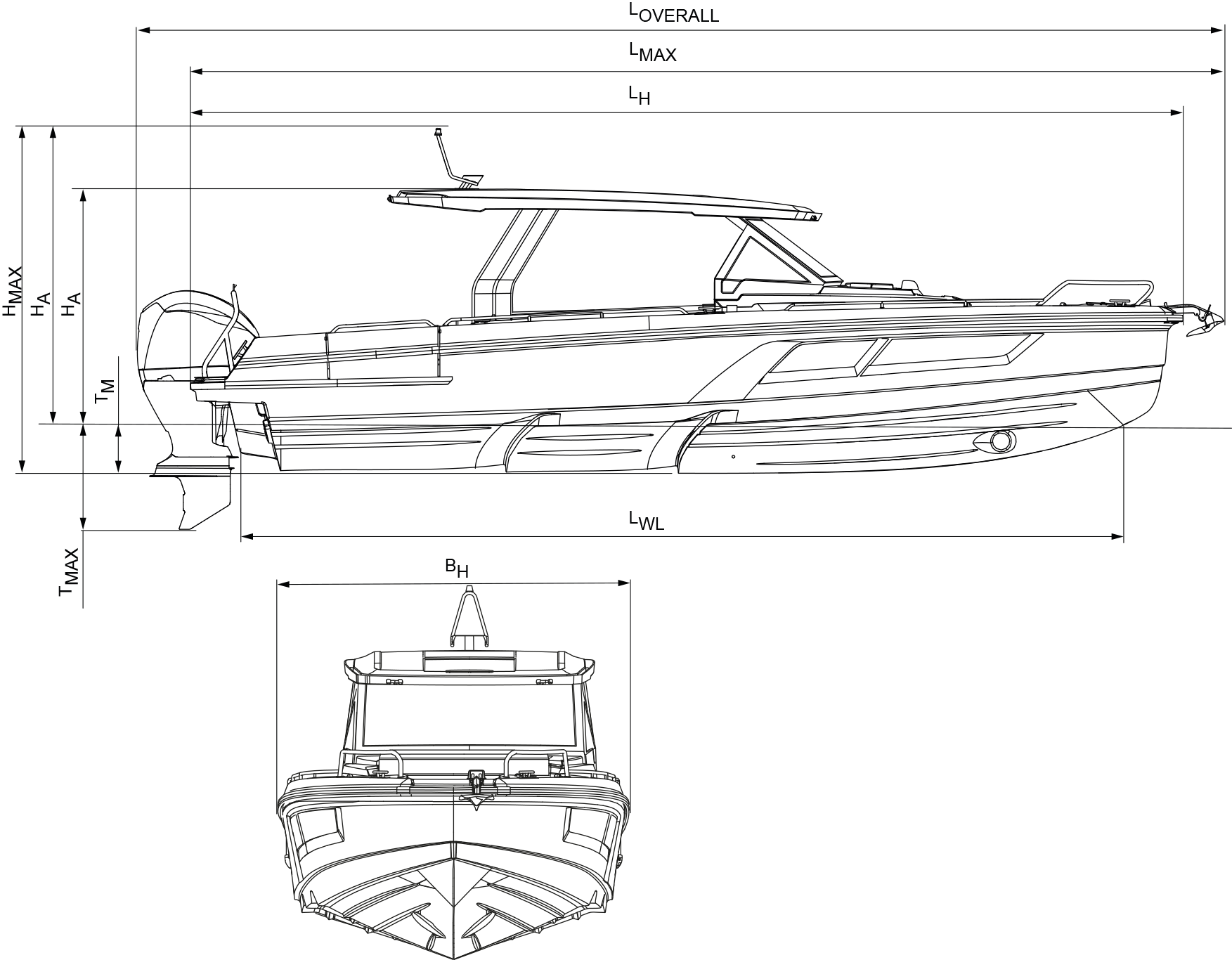

Quarken 35 Sport Tourer dimensions

Dimensions

m

ft

Maximum beam  (BMAX)

3.56

11.68

Hull beam (BH)

3.48

11.42

Maximum length (LMAX)

10.67

35.01

Hull length  (LH)

10.59

34.75

Length on waterline (LWL)

9.42

30.90

Maximum draft (TMAX)

0.91

3.00

Hull draft (TM)

0.58

1.90

Height (HMAX)

3.71

12.17

Height from waterline, mast up (HA)

3.25

10.66

Height from waterline, without light mast (HA)

2.57

8.43

Weight and maximum recommended load

Details

Category B

Category C

kg (lb)

kg (lb)

Empty craft (mEC)

4355 (9601)

4355 (9601)

Boat weight without load (mLC)

Maximum trailering weight, of which:

4905 (10814)

4905 (10814)

Minimum operational equipment

60 (132)

60 (132)

Engine

550 (1213)

550 (1213)

Maximum load (mMTL)

Of which:

1790 (3946)

1980 (4356)

Total person mass.

Calculated average:

  • Adult 75 kg (165 lb)

  • Child 37.5 kg (83 lb)

750 (1653)

900 (1984)

Personal luggage and stores

100 (220)

120 (265)

Edible stores and provisions

100 (220)

120 (265)

Gasoline

600 (1323)

600 (1323)

Fresh water

120 (265)

120 (265)

Septic waste

120 (265)

120 (265)

Boat weight with maximum load (mLDC )

6635 (14628)

6785 (14958)

Tank capacities

L

gal

Gasoline fuel tank

800

211

Fresh water tank

120

32

Septic tank

120

32

Diesel tank

40

11

Bilge pump output capacities

L/s

gal/min

Electric bilge pump

41

650

Manual bilge pump

33

523

Recommendations for mooring, anchoring and towing

Line types for mooring and towing

  • Polyamide, polyester and nylon lines 12 mm (in)

Anchor chain type

  • Diameter 10 mm (in)

  • Length 3.5 m (ft)

Strength ratings for mooring, towing and anchoring lines

  • Towing and ancho­ring from front cleat: 40.5 kN

  • Mooring forward force rating for front and centre cleats: 32.0 kN

  • Mooring rearward force rating for the back cleat: 26.6 kN

External anchors

  • Main anchor minimum 10 kg (22 lb)

  • Secondary anchor 7.5 kg (17 lb)
