4.7 Hull and superstructure openings

Your boat has a number of openings where water can get in or out. These require your attention during use in order to prevent water ingress and to ensure passenger safety.

The following diagrams indicate the location of these openings in the hull and superstructures (areas above the deck).

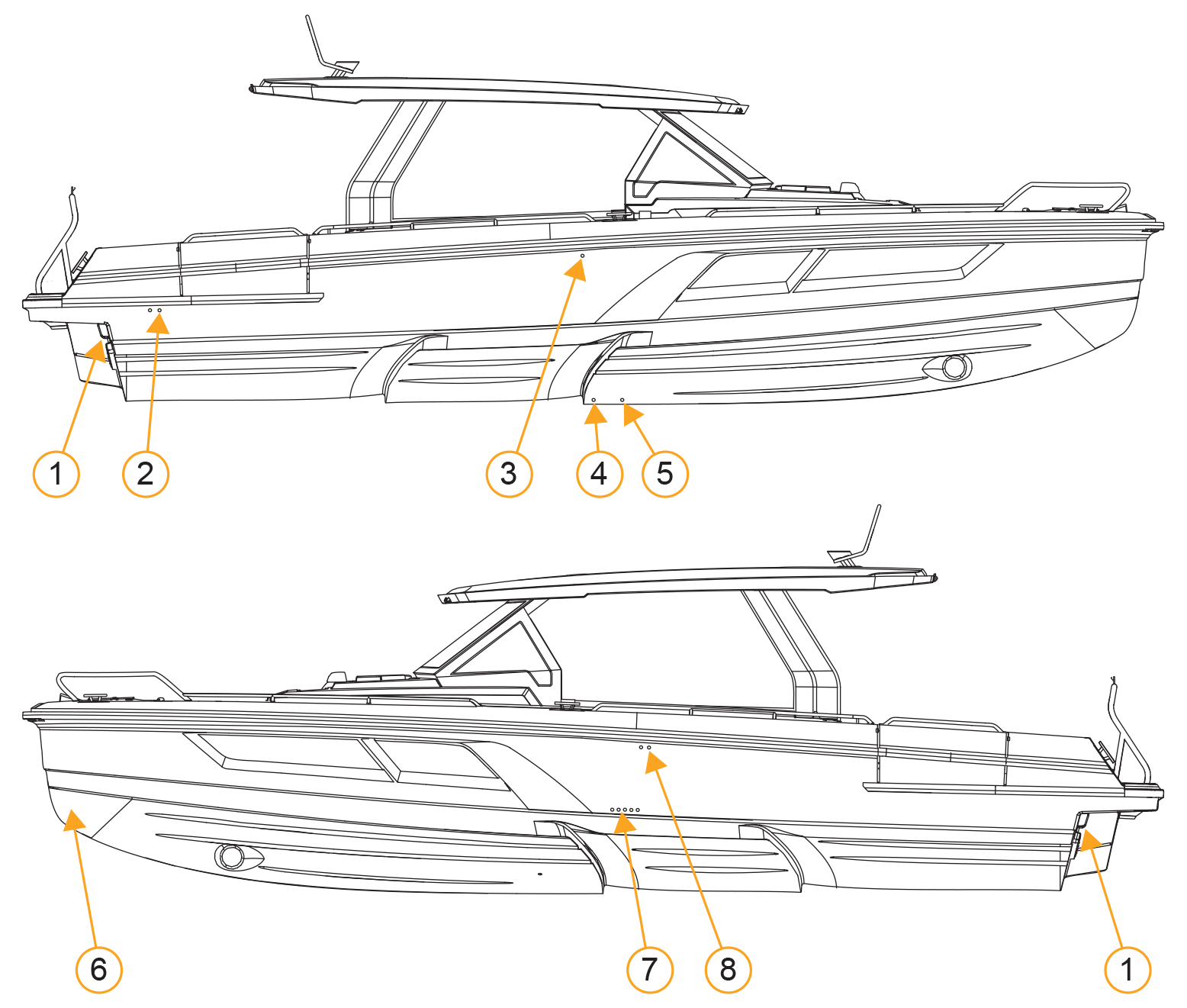

Hull openings

  1. Deck draining

  2. Bilge pump drain holes

    • Aft automatic bilge pump

    • Manual bilge pump

  3. Gasoline fuel tank ventilation opening

  4. Septic tank drain hole equipped with seacock

  5. Toilet flush water inlet equipped with seacock

  6. Anchor box draining

  7. Drainage holes

    • Shower pump

    • Toilet sink

    • Galley sink

    • Front automatic bilge pump

    • Wet bar sink

  8. Exhaust and ventilation

    • Heater and stove exhaust*

    • Diesel tank ventilation*

    • Septic tank ventilation

    • Fresh water tank ventilation

    • Grey water tank ventilation

* Optional

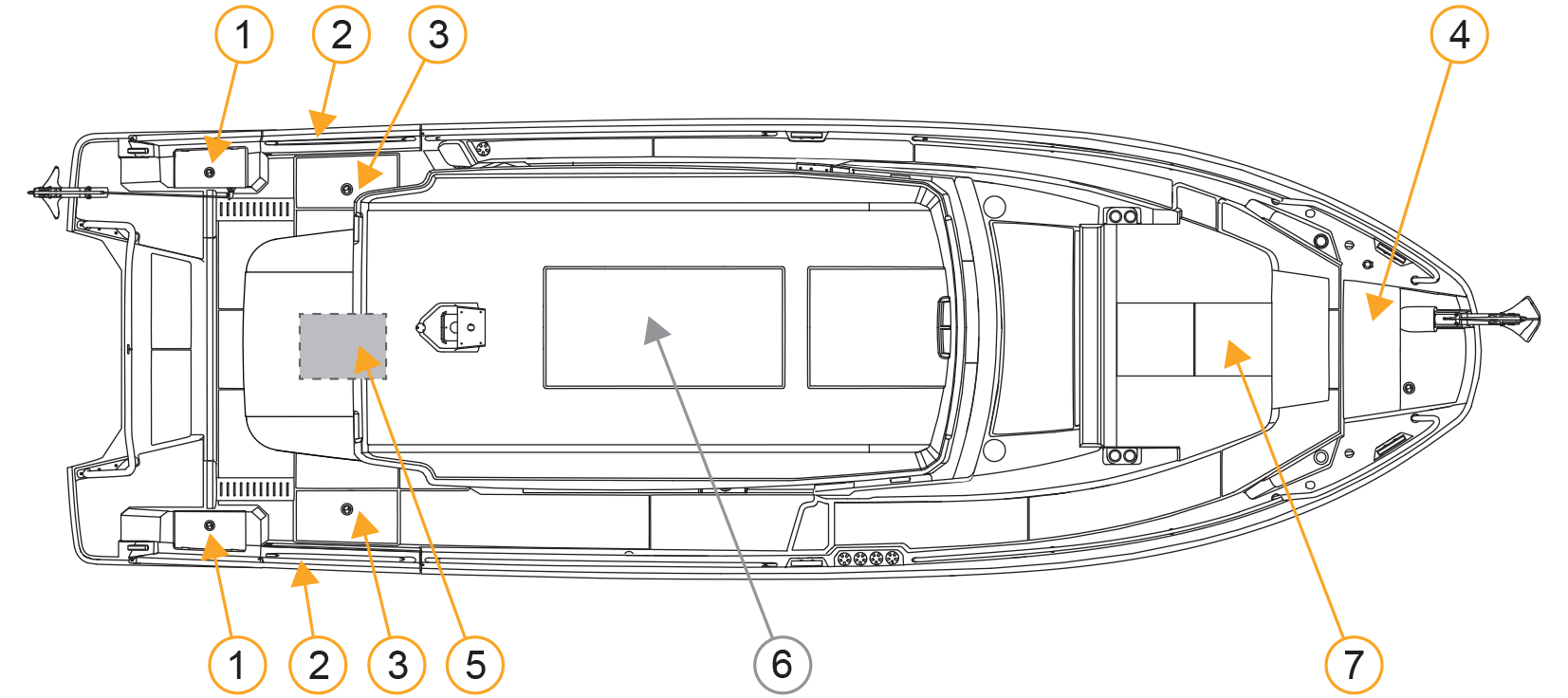

Hatches - top view

  1. Aft anchor storage hatch

  2. Side terrace

  3. Cockpit side hatch

  4. Bow anchor storage hatch

  5. Cockpit mid hatch

  6. Sky window

  7. Deck hatch
