Your boat has a number of openings where water can get in or out. These require your attention during use in order to prevent water ingress and to ensure passenger safety.
The following diagrams indicate the location of these openings in the hull and superstructures (areas above the deck).

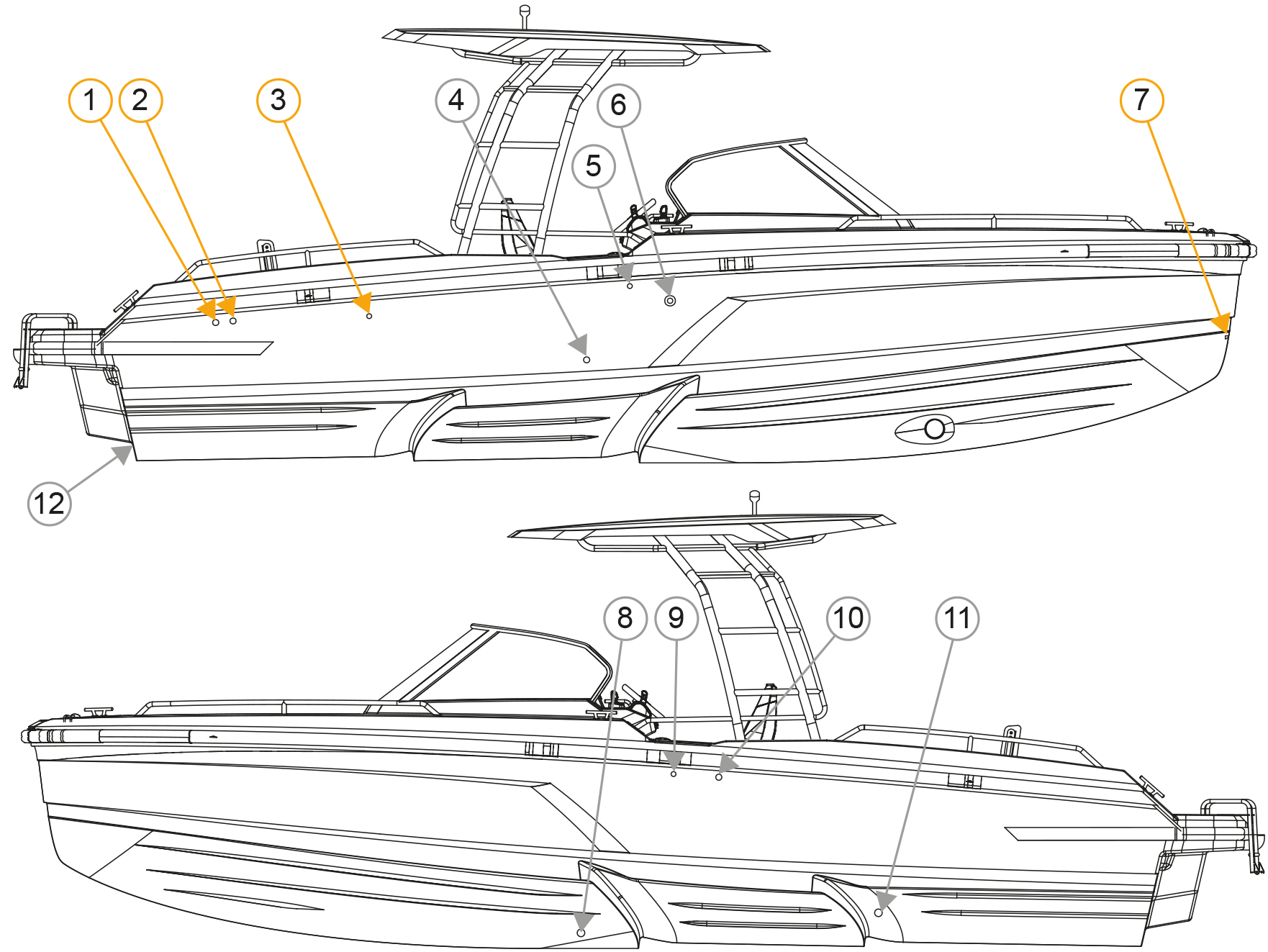

Hull openings
-
Manual bilge pump drain hole
-
Electric bilge pump drain hole
-
Gasoline tank ventilation opening
-
Toilet sink drain hole*
-
Fresh water tank ventilation opening*
-
Heater exhaust valve*
-
Anchor box drain hole
-
Toilet flush water inlet*
-
Diesel tank ventilation opening*
-
Septic tank ventilation opening*
-
Septic tank drain hole*
-
Bilge drain hole**
*Optional
** US market only

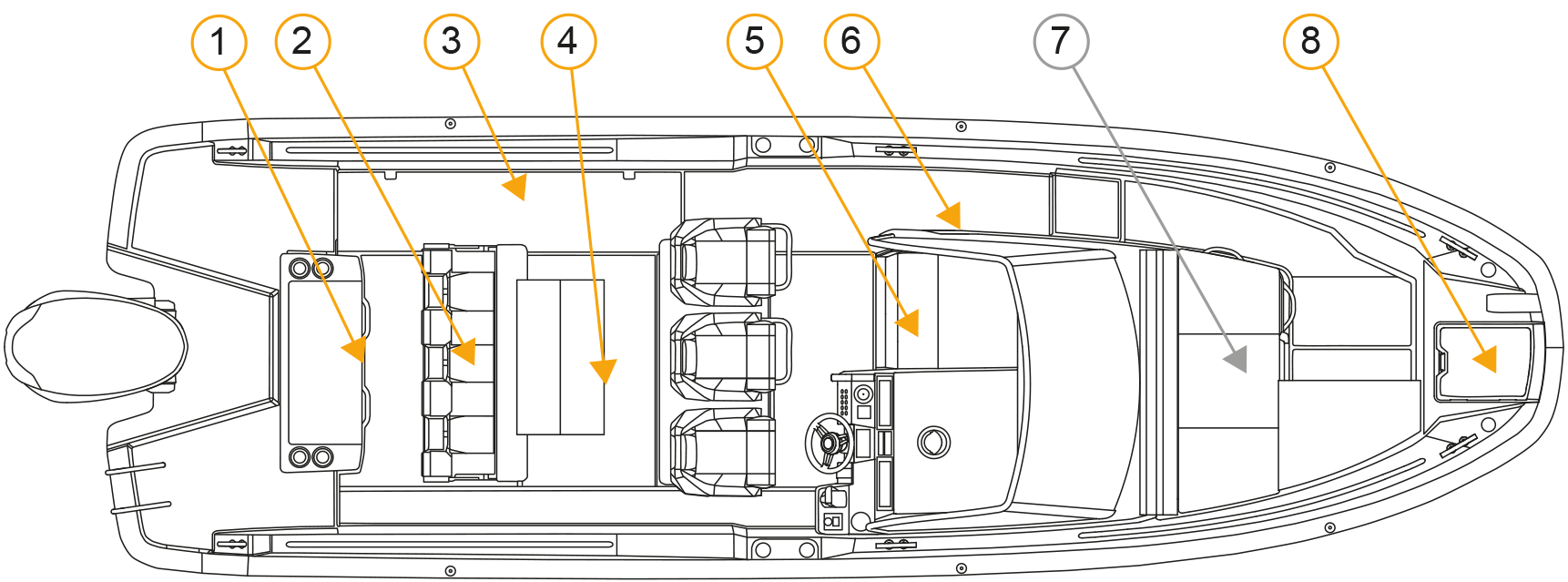

Windows, doors and hatches
-
Wet bar door
-
Fuse hatch (in the storage locker)
-
Battery hatch
-
Deck hatch
-
Cabin hatch
-
Cabin ventilation window
-
Forehatch*
-
Anchor storage hatch
*Optional
