4.2 Electrical system

Your boat is equipped with a 12 V electrical direct current (DC) system. Shore power with a 110/230 V current is available as an option.

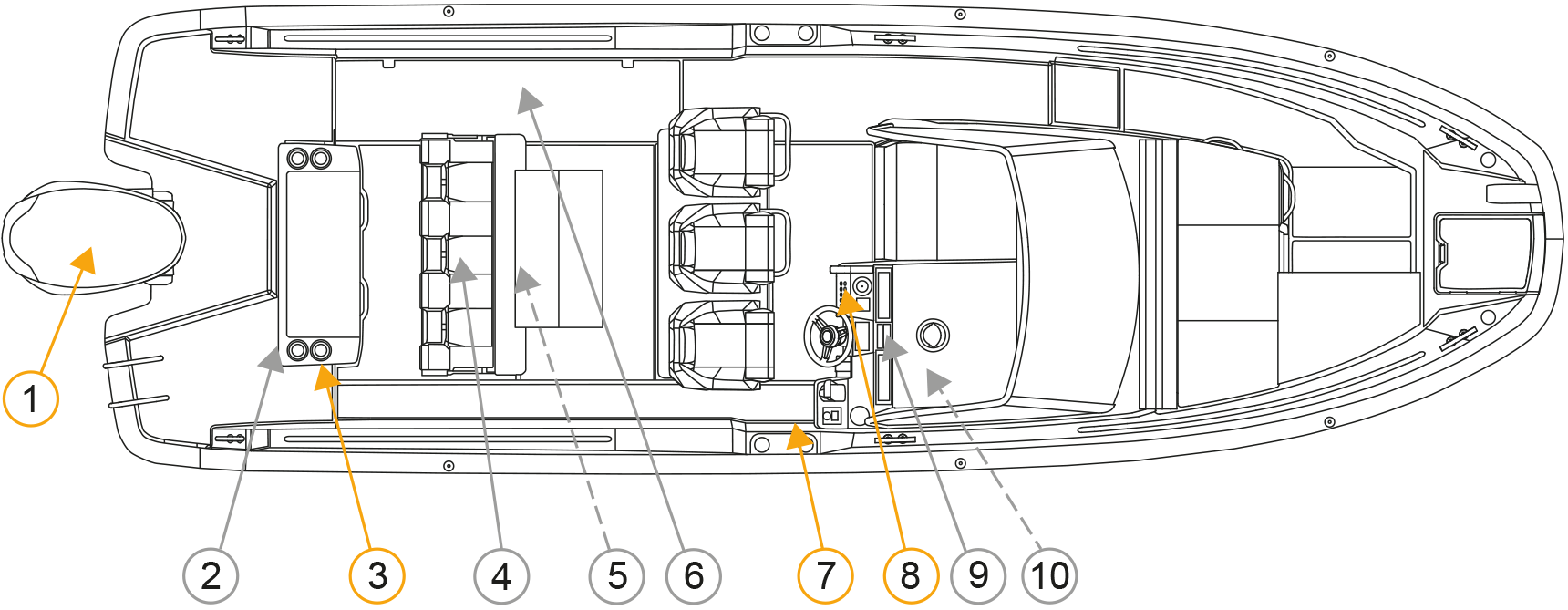

12 V electrical system and shore power

  1. Engine charger

  2. Shore power connection plugin unit*

  3. Main switch panel

  4. Heavy-duty fuses*

  5. Shore power component (under deck hatch)*

  6. 12 V system batteries

  7. USB port

  8. Function control panel

  9. Charging platform phone*

  10. 230 V socket outlet (inside cabin)*

*Optional

For details, see the boat’s wiring diagrams available in the Owner's Bag.

Risk of electric shock.

  • Never switch off the current when the engine is running. This may cause damage to the alternator.

  • Never perform any work on the electrical circuits when they are connected. Never alter the electrical system or any related diagrams but turn to a professional specialized in marine electrical systems.

  • Never modify the rated current amperage of over-current protective devices.

  • Never reset or replace electrical appliances with components exceeding the rated current amperage of the circuit.

  • Never leave the boat unattended with the electrical system energized, except for the automatic bilge pump, fire protection and alarm circuits.
